Understanding Bi Directional Communication

At its core, bi-directional communication is a two-way street for data. Think of it less like a one-way radio broadcast and more like a real phone conversation, where information flows back and forth, creating a genuine dialogue. This dynamic exchange is what makes modern technology feel so responsive and interactive.

Understanding the Two-Way Data Flow

Bi-directional communication is all about creating a continuous feedback loop. It allows a device to not only send information but also receive commands and confirmations in return. Unlike one-way (unidirectional) systems that are stuck just transmitting or just receiving, this two-way model enables a constant conversation. This simple "send and receive" dynamic is the engine driving most of the smart tech we use every day.

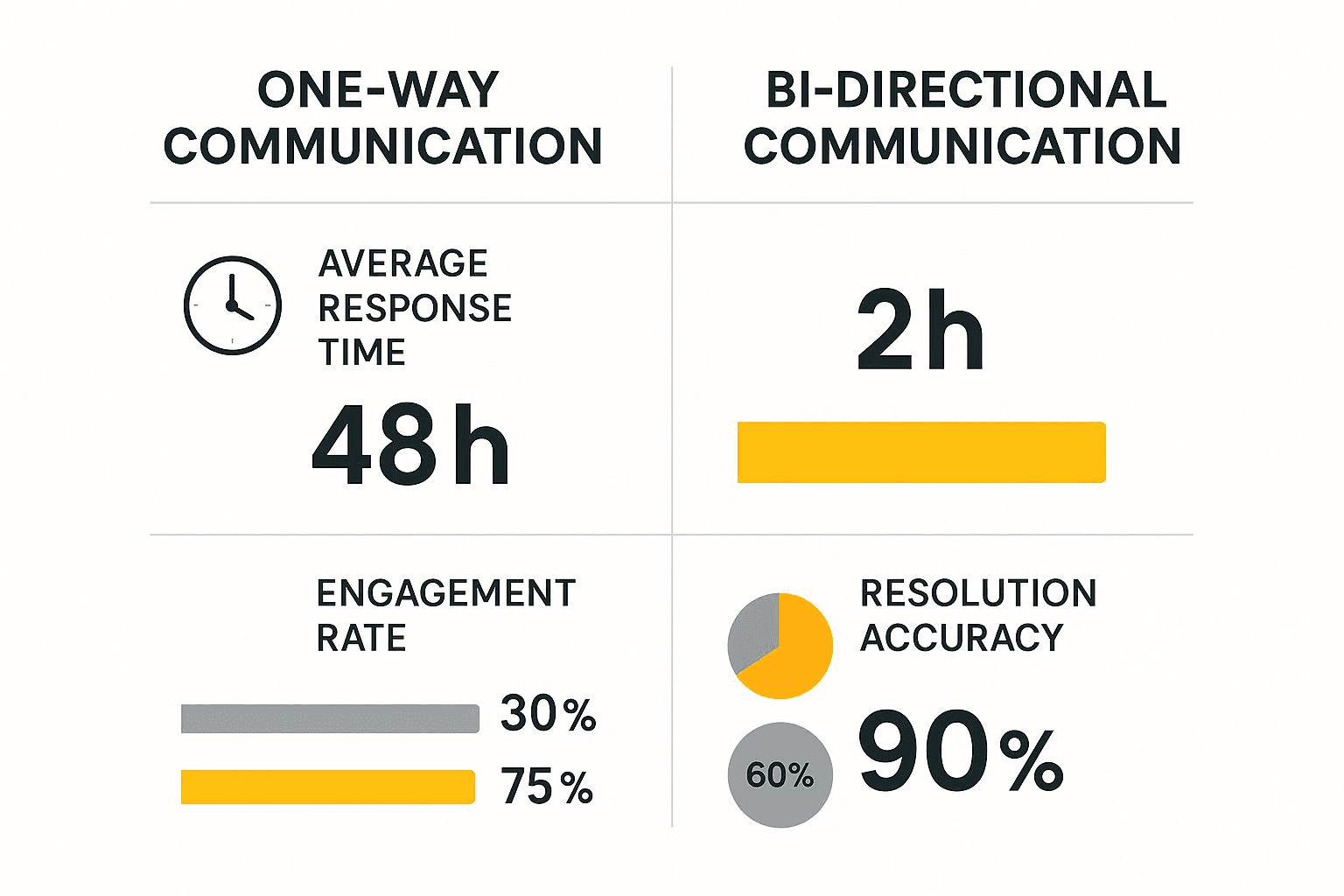

The infographic below breaks down just how much of a difference this makes, comparing key metrics between one-way and two-way communication.

As the data clearly shows, switching to a two-way model dramatically cuts down response times while boosting both user engagement and the accuracy of outcomes.

One-Way vs Bi-Directional Communication at a Glance

To really nail down the differences, let's look at a side-by-side comparison. The following table highlights the fundamental distinctions between these two communication models.

This table makes it clear why bi-directional communication is so crucial for building reliable, interactive systems where devices need to do more than just report data—they need to react to it.

Practical Examples in Action

Let’s ground this in a few real-world scenarios you’re probably familiar with:

• Smart Home: Your temperature sensor sends the current room temperature to a smart thermostat. The thermostat processes this, checks your settings, and sends back a command telling the HVAC system to turn on the heat. This is a classic example where the business value is comfort and energy efficiency, enabled by simple two-way tech.

• Industrial IoT: A sensor on a factory conveyor belt transmits its operational speed. A central control system analyzes this and sends back an instruction to slow down the motor to prevent a potential failure. The business value here is immense: preventing costly downtime and extending machinery life.

• Customer Service AI: When you talk to a conversational AI, it receives your voice in real time. It then processes your request and instantly sends back a spoken response, creating a fluid interaction. The business value is improved customer satisfaction and lower operational costs.

The Growing Importance of Two-Way Systems

The demand for this kind of technology is exploding. The global market for bi-directional transceivers—the tiny components that make this two-way data flow possible—was valued at around USD 1.2 billion and is expected to hit USD 2.5 billion by 2033.

That’s a compound annual growth rate (CAGR) of about 9.2%, which really highlights how essential these systems have become. If you want to dig deeper into this trend, you can check out the full research on bi-directional transceivers and its market drivers.

Key Protocols for Two-Way Data Flow

For devices to have a genuine conversation, they need a common language and a reliable postal service. In the world of bi-directional communication, we call these protocols. They set the ground rules for how data is packaged, sent, and received, making sure messages don't get lost along the way. While a few different protocols can do the job, some are better suited for specific tasks than others.

MQTT: The Lightweight Choice for IoT

MQTT (Message Queuing Telemetry Transport) is a lean and efficient messaging protocol built for networks that might be slow, unreliable, or have limited bandwidth. You can think of it as a highly organized digital post office designed specifically for machine-to-machine chats.

Instead of devices trying to talk directly to each other—which gets messy and complicated fast—they all communicate through a central hub called an MQTT broker. This broker acts like a postmaster, managing the flow of messages using a simple but powerful publish/subscribe (pub/sub) model.

• Publish: A device, like a temperature sensor, sends a message to a specific "topic" (e.g., home/livingroom/temperature). This is like dropping a letter into a clearly labeled mailbox at the post office.

• Subscribe: Another device or app, maybe a smart thermostat or your dashboard, tells the broker it's interested in any messages sent to that exact topic. This is like asking the post office to forward all mail from that specific mailbox to you.

What's brilliant about this is how it decouples the sender from the receiver. The temperature sensor has no idea the thermostat even exists; it just does its job of publishing data to the right topic. This setup makes the entire system incredibly flexible and easy to scale.

Comparing Communication Protocols: MQTT vs. WebSockets

While MQTT is a go-to for many IoT projects, it’s not the only game in town for enabling bi-directional communication. WebSockets are another key technology, especially prevalent in web applications. Let's compare them.

The choice between protocols is critical. For a deeper dive into how MQTT's efficiency compares directly with traditional web requests, check out our guide on MQTT vs. HTTP for IoT applications.

Practical Code Snippet: WebSockets in JavaScript

Seeing it in action makes the concept click. Here’s a quick JavaScript snippet for a web browser, showing how a client connects to a WebSocket server, sends a message, and listens for a response.

// Create a new WebSocket connection.
// Replace 'ws://...' with your WebSocket server URL.
const socket = new WebSocket('wss://socketsbay.com/wss/v2/1/demo/');

// Connection opened
socket.addEventListener('open', function (event) {
    console.log('Connected to WebSocket server.');
    // Send a message to the server
    socket.send('Hello Server!');
});

// Listen for messages from the server
socket.addEventListener('message', function (event) {
    console.log('Message from server: ', event.data);
});

// Connection closed
socket.addEventListener('close', function (event) {
    console.log('Disconnected from WebSocket server.');
});

// Listen for connection errors
socket.addEventListener('error', function (event) {
    console.error('WebSocket error: ', event);
});

This simple client establishes a persistent two-way channel, ready to send and receive data in real time, demonstrating the core of bi-directional web communication.

How Bi-Directional Communication Powers IoT

This is where the theory hits the road. Bi-directional communication is the absolute engine of the Internet of Things (IoT). It's what transforms a collection of simple, isolated devices into a smart, coordinated network that can actually do things.

Think of it this way: one-way communication is like a sensor that just shouts its temperature reading into a room, whether anyone is listening or not. Bi-directional communication is a full-on conversation. The sensor speaks, and the system listens, thinks, and talks back.

The real magic happens when you create a feedback loop. A device sends data up to a central system (uplink), and that system can send a command back down (downlink). This constant dialogue is what unlocks the automation, remote control, and proactive management that make any IoT project truly valuable.

Use Case: Smart Factories and Predictive Maintenance

Let's walk through a real-world use case. Picture a factory floor buzzing with complex machinery. The business goal is to maximize uptime and minimize repair costs.

• Business Value: Predictive maintenance powered by bi-directional communication can reduce equipment downtime by up to 50% and maintenance costs by up to 40%.

• Tech Adoption:

  1. Data Transmission (Uplink): A sensor on a critical motor is constantly sending its performance data—temperature, vibration patterns, energy use—up to a central platform like ThingDash using MQTT.

  2. Analysis and Decision: The platform crunches the numbers, comparing them to historical data and AI models. It spots a subtle vibration pattern it knows is a precursor to mechanical failure.

  3. Command Transmission (Downlink): Instead of just flagging an alert, the system automatically sends a command back down to the machine's controller, telling it to reduce its operational speed to prevent catastrophic failure. At the same time, it creates a maintenance ticket for the next shift.

This two-way flow is a game-changer. It flips maintenance from a reactive, costly chore to a proactive, data-driven strategy that directly impacts the bottom line.

Use Case: Smart Agriculture and Resource Automation

You see the same powerful pattern in smart agriculture, where the business goal is to increase crop yield while reducing resource consumption (water, fertilizer).

• Business Value: Precision irrigation can reduce water usage by over 30% and increase crop yields by improving plant health.

• Tech Adoption:

  1. Uplink: Soil moisture sensors across a field constantly send data to a central irrigation hub.

  2. Downlink: When the hub sees that a particular section is getting dry, it doesn't just alert a farmer. It immediately sends a command directly to the irrigation system's actuators, turning on sprinklers for that specific zone for a precise amount of time.

It’s a perfect closed-loop system, ensuring water is only used exactly when and where it's needed, providing clear ROI.

This constant "send and receive" capability is what transforms passive sensors into active, intelligent assets. It's the foundation for critical IoT functions like remote device management, over-the-air (OTA) firmware updates, and automated control logic.

Core Capabilities Unlocked by Two-Way Flow

When devices can both talk and listen, a whole new world of essential IoT features opens up—things that are simply impossible with one-way communication.

• Remote Device Management: A technician can ping a device in the field from hundreds of miles away, check its status, run diagnostics, or even reboot it without ever leaving the office.

• Over-the-Air (OTA) Updates: You can push new features and, more importantly, critical security patches to thousands of deployed devices all at once. This keeps your fleet up-to-date and secure. For more on this, check out our guide on how to secure your MQTT broker with certificates and TLS.

• Automated Control: As we saw in the factory and farm examples, systems can react to changing conditions on their own, creating true automation.

The market is taking notice. The bi-directional amplifiers market—a key component for boosting these two-way signals—was valued at USD 4.29 billion and is expected to hit USD 12.2 billion by 2032. This explosive growth is directly tied to the need for robust, high-speed wireless tech to support these advanced IoT systems. You can discover more insights about the bi-directional amplifiers market to see just how fast this space is moving.

Building Your Own Smart Light System

Theory is great, but there’s no better way to make a concept stick than by getting your hands dirty. Let's build a simple smart light system to see a complete bi-directional communication loop in action. This little project will use a public MQTT broker and two simple Python scripts to simulate both a smart bulb and a remote control.

By walking through this example, you'll see firsthand how a device can receive commands and report its status back. This feedback loop is the secret sauce that makes smart technology feel, well, smart.

Step 1: Coding the Smart Bulb Device

First up, we need to create our "smart bulb." This Python script will connect to an MQTT broker and behave just like a real IoT device. It has two critical jobs that are the foundation of bi-directional communication:

• Subscribing to Commands: It listens to a specific channel (or "topic" in MQTT lingo) called light/control for incoming messages like 'ON' or 'OFF'. This is the "receive" part of the conversation.

• Publishing its Status: After it changes state, it immediately reports back on a different topic, light/status. This is the "send" part, confirming that the command was successfully executed.

Here’s the code for our simulated bulb. It uses the excellent paho-mqtt library, which you can install by running pip install paho-mqtt in your terminal.

import paho.mqtt.client as mqtt
import time

bulb_state = "OFF" # Initial state

# Function called when a message is received from the broker
def on_message(client, userdata, msg):
    global bulb_state
    command = msg.payload.decode()
    print(f"Received command: {command}")

    if command == "ON" or command == "OFF":
        bulb_state = command
        print(f"Bulb is now {bulb_state}")
        # Publish the new status back to the status topic
        client.publish("light/status", bulb_state, qos=1) # Use QoS 1 for guaranteed delivery

# Function called when the client connects to the broker
def on_connect(client, userdata, flags, rc):
    print(f"Connected with result code {rc}")
    # Subscribe to the control topic to listen for commands
    client.subscribe("light/control")

client = mqtt.Client()
client.on_connect = on_connect
client.on_message = on_message

# Connect to a public MQTT broker
client.connect("mqtt.eclipseprojects.io", 1883, 60)

print("Smart Bulb is online. Waiting for commands...")
client.loop_forever() # Loop to process messages

When you run this script, it connects to the broker and just sits there, patiently waiting for instructions on the light/control topic.

Step 2: Creating the Controller

Next, let's write the controller script. Think of this program as your mobile app or a central dashboard like ThingDash. Its job is to send commands and listen for the bulb's replies, completing our two-way communication loop.

This script will:

• Publish Commands: It sends 'ON' or 'OFF' messages to the light/control topic, telling the bulb what to do.

• Subscribe to Status: It listens to the light/status topic to get real-time confirmation of the bulb's state.

Here is the controller's code:

import paho.mqtt.client as mqtt
import time

# Function called when a status message is received
def on_message(client, userdata, msg):
    print(f"Received status update: Bulb is {msg.payload.decode()}")

client = mqtt.Client()
client.on_message = on_message

client.connect("mqtt.eclipseprojects.io", 1883, 60)

# Subscribe to the status topic to get feedback
client.subscribe("light/status")
client.loop_start() # Start a background thread to listen

# --- Send Commands ---
print("Sending command: ON")
client.publish("light/control", "ON", qos=1)
time.sleep(2) # Wait for the bulb to respond

print("\nSending command: OFF")
client.publish("light/control", "OFF", qos=1)
time.sleep(2)

client.loop_stop()

By running both scripts at the same time (in separate terminal windows), you create a perfect, live demonstration of bi-directional communication. The controller sends a command, the bulb receives it, acts on it, and sends a status confirmation right back. This closed-loop system is what provides the reliability and real-time feedback that every effective IoT application needs.

Advanced Application in Vehicle to Grid V2G Charging

Beyond smart homes and factories, bi-directional communication is kicking off some truly groundbreaking shifts in massive industries like energy and automotive. One of the most powerful use cases is Vehicle-to-Grid (V2G) technology, which completely redefines the role of an electric vehicle (EV). It's no longer just an energy consumer; it's an active, dynamic player in the power grid.

Instead of the old one-way street where a car only draws power, V2G creates a two-way energy highway. This constant dialogue allows an EV not just to charge its battery but also to sell that stored energy back to the grid when it's needed most.

How V2G Turns EVs into Power Banks

The whole V2G concept hinges on a constant, reliable conversation between the EV, the charging station, and the grid operator. This is all managed by sophisticated protocols like ISO 15118, which standardizes how information flows for both charging and discharging.

Here’s a look at how this two-way chat works in the real world:

1. Request from the Grid: It's a heatwave, and energy demand spikes. The grid operator sends out a broadcast request for extra power to participating V2G charging stations.

2. Communication with the EV: The charger "talks" to a plugged-in EV, checking its battery level and the owner’s preset rules (for example, "never let my battery dip below 50%"). This is the bi-directional command and response.

3. Energy Discharged: If conditions are right, the EV's on-board charger reverses the flow. It sends a specific amount of electricity back to the V2G charger, which then feeds it directly into the grid. The EV continuously reports its state of charge during this process.

This entire dance would be impossible without a rock-solid bi-directional communication channel making sure every component is perfectly in sync.

V2G technology effectively transforms a city's fleet of parked EVs into a massive, distributed battery. This provides a crucial buffer that helps stabilize the power grid during peak loads or unexpected outages, making our entire energy infrastructure more resilient.

The Business Value of a Two-Way Energy Flow

The implications here are enormous, creating value for everyone involved. For EV owners, it opens up a brand-new revenue stream; they can earn money by selling excess power back to utility companies. For grid operators, it means they don't have to fire up expensive and polluting "peaker" power plants just to handle high demand. This represents a significant business model innovation for the energy sector.

The growth in this space is undeniable. The bidirectional EV charging market, valued at around USD 927 million, is on track to skyrocket to USD 4.62 billion by 2032. That’s a compound annual growth rate (CAGR) of 20%, fueled by V2G, Vehicle-to-Home (V2H), and other two-way systems. You can learn more about the accelerating bidirectional EV charging market to see the full scope of this trend.

This whole system relies on lightweight and efficient messaging protocols to handle the complex data exchange. If you're curious about the tech that underpins these kinds of large-scale IoT networks, you might be interested in our guide on why and what is MQTT, a core protocol for applications just like this.

Got Questions? We've Got Answers

As we've dug into what bi-directional communication is and how it works, you might have a few questions bubbling up. That's a good thing! Let's tackle some of the most common ones to clear things up.

How Is Bi-Directional Different From Full-Duplex?

This is a fantastic question and a common point of confusion. The two terms sound alike, but they're describing different things at different layers of the communication stack.

Think of bi-directional communication as the general ability for an application or system to both send and receive data. It's like a two-way radio—the conversation can go both ways.

Full-duplex and half-duplex describe the physical layer capability of the communication channel.

• Full-duplex: Data can be sent and received at the exact same time. A phone call is a perfect analogy, where both people can talk and listen simultaneously.

• Half-duplex: Data can be sent or received, but not at the same time. A walkie-talkie is the classic example: you have to push to talk, then release to listen.

Key Takeaway: A bi-directional system can run over either a half-duplex or full-duplex channel. The important part is that the logic allows for a two-way flow of information, even if it's not simultaneous.

What Are the Main Security Concerns?

Opening up a two-way street for data definitely brings new security risks to the table. When a device can receive commands, you have to protect it from bad actors trying to send malicious ones.

Here’s what you need to watch out for:

• Unauthorized Access: If a channel isn't locked down, an attacker could get in and take control. Imagine someone turning off your security cameras or, even worse, sending false commands to industrial machinery.

• Data Interception (Man-in-the-Middle): An unsecured two-way conversation can be "overheard" by attackers, who could steal sensitive info or alter commands flowing in either direction.

• Denial of Service (DoS) Attacks: Bad actors could bombard a device with a flood of junk commands, completely overwhelming it and stopping it from doing its job.

This is why proper encryption (like TLS/SSL), strong authentication (client certificates, username/password), and strict authorization (Access Control Lists) are absolutely non-negotiable for any bi-directional system.

Can HTTP Be Used for Bi-Directional Communication?

Out of the box, no. Traditional HTTP/1.1 is a classic request-response protocol. A client makes a request, and a server sends back a response. The server can't initiate a conversation on its own.

However, several techniques have been developed to simulate or enable bi-directional flow over HTTP:

• HTTP Long-Polling: A client sends a request to the server, but the server holds the connection open until it has new data to send. It's inefficient but was a common early solution.

• WebSockets: This is the modern standard. A client initiates a connection via an HTTP Upgrade request, which establishes a persistent, full-duplex TCP socket. This allows for true, low-latency bi-directional communication. WebSockets are ideal for real-time web apps.

• Server-Sent Events (SSE): This is a one-way street from server to client, but it's worth mentioning. It allows a server to push updates to a client over a standard HTTP connection. It is not truly bi-directional.

So, while you can build bi-directional systems on top of HTTP, protocols like MQTT are often a better fit for non-web (IoT/M2M) use cases due to their lower overhead and pub/sub architecture.

What Industries Benefit Most From This Technology?

Honestly, the benefits are popping up everywhere, but some industries are practically built on this technology. Any sector where real-time control, monitoring, and automation are make-or-break will see huge gains.

• Industrial IoT (IIoT) & Manufacturing: Think predictive maintenance, controlling massive machines from afar, and fully automated production lines.

• Energy & Utilities: We already saw this with V2G charging, but it’s also crucial for smart grids, remote asset management, and demand-response systems.

• Healthcare: Remote patient monitors are a prime example—they send vital signs constantly while also being able to receive configuration updates or alarms from medical staff.

• Logistics & Transportation: This is the magic behind real-time vehicle tracking, fleet management, and sending new route commands to an entire fleet on the fly.
