Modbus TCP vs Modbus RTU: A Practical Comparison

The real difference between Modbus TCP and RTU boils down to one thing: Modbus TCP runs over modern Ethernet networks, while Modbus RTU uses old-school serial lines. Your choice hinges on whether you need the speed and reach of an office network or the rugged, direct connection of point-to-point wiring.

Understanding the Core Differences

When you're mapping out an industrial automation project, picking between Modbus TCP and Modbus RTU is one of your first big decisions. They both speak the same core Modbus language, but how they transmit that language couldn't be more different. This isn't just a technical detail—it shapes your costs, how easily you can scale, and whether your system plays nicely with modern IT and IoT platforms.

Modbus RTU is the original. It’s a workhorse protocol built for simplicity and reliability over serial connections like RS-485. It sends data in a tight binary format, which is perfect for low-bandwidth situations. Think of it like a dedicated, private line between two devices—it’s direct, tough, and ideal for controlling a single machine or a small group of nearby sensors.

Modbus TCP, on the other hand, takes that classic Modbus message and wraps it in a standard TCP/IP packet. This is a game-changer because it lets Modbus traffic run over the same Ethernet networks your computers use. Suddenly, you get higher speeds, communication across entire facilities, and the ability for multiple systems to pull data from one device at the same time. It’s a natural fit for integrating your factory floor with enterprise-level software.

While Modbus is an industrial staple, it's also worth seeing how it compares to newer protocols designed for the IoT era. For a deeper look, check out our guide on MQTT vs HTTP for IoT applications.

Key Takeaway: Go with Modbus RTU when you need a cost-effective and rock-solid solution for localized control, especially in electrically noisy areas with older equipment. Choose Modbus TCP when you need speed, scalability, and seamless integration with your modern, Ethernet-based IT and OT infrastructure.

High-Level Comparison Modbus RTU vs Modbus TCP

Before diving deep into the technical weeds, this table gives you a quick snapshot of the fundamental differences. Use it to get your bearings and guide your initial decision-making.

In short, the two protocols solve the same problem—moving Modbus data—but in vastly different contexts. One is built for direct, simple links, while the other is made for the interconnected world of modern networking.

What Modbus TCP and Modbus RTU Have in Common

Before diving into the differences between Modbus TCP and Modbus RTU, it's crucial to understand what they share. Both protocols are just different flavors of the original standard cooked up by Modicon way back in 1979. This shared DNA is why they both use the "Modbus" name and, with the help of gateways, can often play nicely together in the same system.

At the core of both is the classic client-server model, which you might still hear referred to by its older name, master-slave. In this setup, one device—the client (or master)—is the boss. It initiates every conversation by sending a request to a server (or slave) and then waits for a reply. The server devices are purely reactive; they never speak unless spoken to.

This simple, predictable structure is a big reason why Modbus is still around. It naturally prevents data collisions and creates an orderly flow of information, which is non-negotiable in industrial control systems where reliability is everything.

The Universal Data Model

Both Modbus RTU and TCP see data the same way. They use a simple, logical structure built on four main data tables, or "registers," that represent different types of information inside a device. It doesn't matter what physical wire the data travels on; the organization remains the same.

• Coils: Think of these as single on/off switches. They are single-bit, read/write registers used to control outputs like a relay or a motor (0 for OFF, 1 for ON).

• Discrete Inputs: These are also single-bit registers, but they're read-only. You'd use these to check the status of a digital input, like a door sensor or a limit switch.

• Input Registers: These are 16-bit, read-only registers designed to hold measurements from sensors, such as a temperature or pressure reading.

• Holding Registers: These are the workhorses. They are 16-bit read/write registers, perfect for storing configuration settings or operational setpoints, like the target temperature for an oven.

This shared data model is the secret sauce for interoperability. A request to read "Holding Register 40108" means the exact same thing to a device, whether it's connected via a serial line using RTU or an Ethernet network using TCP. This consistency is what has made Modbus so powerful and adaptable for decades.

Function Codes: The Common Language

At the heart of every Modbus message are function codes. These are simple numbers that tell the server device what action the client wants it to take. Since both RTU and TCP use the same set of function codes, the core logic of the request doesn't change.

For instance, a client will always use Function Code 03 when it wants to read from one or more holding registers. It doesn't matter if that request is wrapped in an RTU frame for a serial network or a TCP packet for an Ethernet network. This standardization means an engineer who understands Modbus logic can easily switch between either variant. It also highlights that Modbus TCP isn't some radical reinvention—it's just a smart adaptation of a proven industrial language for modern networks.

Historically, Modbus RTU became one of the most deployed fieldbus protocols in the world because of its sheer simplicity and toughness. Even today, a 2023 market analysis shows that Modbus RTU still commands around 5% of the installed base for new fieldbus networks, proving its remarkable staying power. You can read more about these industrial network trends and market shares.

Performance and Architecture Under the Hood

The performance gap between Modbus TCP and RTU isn't just a minor difference—it comes from two fundamentally different design philosophies. RTU is a lean, direct protocol built for old-school serial lines, while TCP is its modern cousin, adapted to thrive on Ethernet networks. Getting a grip on these underlying structures is the key to knowing how they'll perform in your system.

Modbus RTU was designed for simplicity and efficiency on serial physical layers like RS-485. Its architecture is minimalist, sending data as a raw binary stream. The only thing that separates one message from the next is a silent pause of at least 3.5 character times.

This timing-based approach means the network hardware itself defines the message frame. For error checking, it relies on a Cyclic Redundancy Check (CRC), a simple but effective checksum tacked onto the end of each message. The whole system is engineered for low-overhead communication across a dedicated, multi-drop serial bus.

On the other hand, Modbus TCP wraps the core Modbus message inside the full TCP/IP protocol suite. Instead of using timing gaps, it uses a proper TCP packet to carry the data. This packet includes a special Modbus Application Protocol (MBAP) Header, which effectively replaces the slave address and CRC you'd find in an RTU frame.

This architectural jump is a huge deal in the Modbus TCP vs Modbus RTU conversation. TCP’s use of IP addresses allows it to work across complex facility-wide networks or even the internet. Better yet, the TCP layer itself handles all the heavy lifting of error checking, packet sequencing, and connection management, making it a far more robust transport than RTU's simple CRC.

Speed, Throughput, and Latency

When it comes to raw speed, this isn't even a fair fight. The architectural differences create a massive performance divide.

Modbus RTU is limited by its serial nature, typically running over RS-485 with baud rates topping out around 115,200 bits per second. In contrast, Modbus TCP rides on standard Ethernet, with speeds commonly ranging from 10 Mbps to 1 Gbps. You can see how this performance difference impacts adoption by looking at global Modbus module sales and market trends.

But it's not just about the raw speed; it's about how the data moves.

• Latency in RTU: The master has to poll each slave device one at a time, sequentially. The total time it takes to get data from every device (the scan time) is the sum of all those individual request-and-response cycles. On a large network, this can add up to some serious lag.

• Throughput in TCP: Because it's on Ethernet, Modbus TCP benefits from full-duplex communication. It can send and receive data at the same time, which dramatically boosts throughput, especially when multiple systems need data from the same device.

Think about a high-speed packaging line. An RTU network polling dozens of sensors and actuators might be too slow to keep up, causing bottlenecks. A Modbus TCP network, with its high speed and low latency, could easily handle simultaneous data streams from all those devices, keeping the line running at peak efficiency.

Scalability and Client Connections

One of the most important architectural differences is how each protocol deals with multiple masters, or clients. This directly shapes your system's scalability and flexibility.

Modbus RTU is strictly a single-master protocol. On any given bus, only one master device can start a conversation. If you want a second system—say, a data logger—to grab information from the slaves, it has to wait its turn or you'll need to install complex gateways.

Modbus TCP, built on the TCP/IP stack, was born to be multi-client. Any device on the network can connect to a single Modbus TCP server (your end device) at the same time, as long as it has the right IP address and permissions.

This is a complete game-changer for modern industrial environments where data needs to go to multiple places at once. For example, you could have:

• A SCADA System actively controlling the device.

• An HMI Panel where an operator is monitoring its status.

• A Historian Database logging performance data for analysis.

• An Engineer's Laptop connected for remote troubleshooting.

All these systems can talk to the same device simultaneously without tripping over each other. That's something you simply can't do with a standard Modbus RTU setup, making Modbus TCP the obvious choice for any integrated, enterprise-level system.

Implementation Costs and Infrastructure Needs

When you move from theory to the real world, the choice between Modbus TCP and Modbus RTU often boils down to two things: your budget and what infrastructure you already have. The total cost isn't just about the price tags on a few components; it's the whole picture—cabling, hardware, and the expertise you'll need to get the network running and keep it that way.

At first glance, Modbus RTU looks like the cheaper option. The parts themselves, like RS-485 to USB converters or basic RTU-enabled sensors, are generally inexpensive. Because the protocol is so simple, it can run on low-cost microcontrollers with minimal processing power, which helps keep the device costs down.

But the hidden cost of RTU is often in the wiring. It needs dedicated serial cabling, usually a shielded twisted-pair like Belden 9841, which is fantastic for resisting electromagnetic interference (EMI) but isn't free. While the cable itself isn't outrageously expensive per foot, the labor costs to pull new, dedicated serial lines through a massive factory or across a campus can quickly add up.

Cabling and Hardware Trade-Offs

This is where the comparison gets a lot more interesting. Modbus RTU is built on a physical bus topology that demands careful, upfront planning.

Modbus TCP, on the other hand, runs on standard, everyday Ethernet. Most modern facilities are already wired with Cat5e or Cat6 cabling. This lets you plug Modbus TCP devices directly into an existing Local Area Network (LAN), which can slash initial installation costs if that network is already in place.

Key Insight: The initial cost advantage of Modbus RTU parts can be wiped out in a heartbeat by the high cost of installing new, dedicated serial wiring. If you're in a modern facility with existing Ethernet, Modbus TCP is almost always cheaper to get up and running.

Of course, with TCP, you might save on cabling, but the network hardware is a bit more complex and can be pricier. An unmanaged switch might be fine for a tiny, isolated network, but any serious industrial setup will need managed switches. These are essential for segmenting traffic with VLANs, managing network load, and—most importantly—beefing up security, since TCP networks are inherently more exposed to threats. If you want to dive deeper into securing IP-based industrial networks, our guide on securing your MQTT broker with TLS offers some great parallel insights for protecting connected systems.

Now, let's look at what this all means in terms of cost and resources.

Cost and Infrastructure Considerations

The table below breaks down the typical hardware, skills, and budget you’ll need to consider for each protocol.

Ultimately, the "cheaper" option depends entirely on your starting point. A new, "greenfield" installation might find RTU's simplicity appealing, while a modern facility will almost certainly benefit from TCP's ability to piggyback on existing IT infrastructure.

A Look at the Data Structure

The difference in infrastructure is mirrored in how the data itself is packaged. A developer working with these protocols will see two completely different message structures on the wire.

A Modbus RTU message is a lean, compact binary frame. Its integrity hinges on a Cyclic Redundancy Check (CRC), which is a 16-bit error-checking value calculated from the entire message to make sure it wasn't corrupted in transit.

Here’s a conceptual Python-style look at an RTU frame built to read holding registers:

# Modbus RTU Frame (Conceptual)
# Request to read 2 registers starting from 40108 on slave 1
slave_address = 0x01
function_code = 0x03
start_register_addr = 107 # 40108 - 40001
num_registers = 0x0002

# The core message payload (PDU - Protocol Data Unit)
# The actual register address is 107 (0x006B in hex)
pdu = bytes([
    function_code,
    (start_register_addr >> 8) & 0xFF, # High byte of start address
    start_register_addr & 0xFF,        # Low byte of start address
    (num_registers >> 8) & 0xFF,       # High byte of register count
    num_registers & 0xFF               # Low byte of register count
])

# To build the final RTU frame, you'd calculate the CRC.
# A library would handle this, but the resulting bytes on the wire would be:
# [Slave Addr][Function Code][Start Addr Hi][Start Addr Lo][Count Hi][Count Lo][CRC Lo][CRC Hi]
# Example raw bytes: [01 03 00 6B 00 02 76 87]

Modbus TCP completely throws out the slave address and the CRC. Instead, it wraps the core message (the PDU) inside a special Modbus Application Protocol (MBAP) Header and sends it all inside a standard TCP packet. The TCP layer of the network stack handles all the error checking and makes sure the message arrives reliably.

Here’s how that same request is framed for TCP:

# Modbus TCP Frame (Conceptual)
# Same request: read 2 registers starting from 40108 on unit 1
transaction_id = 0x0001  # A unique ID for the request/response pair
protocol_id = 0x0000     # Always 0 for Modbus
length = 0x0006          # Length of unit ID + PDU (1 byte + 5 bytes)
unit_id = 0x01           # The original slave address

# PDU is the same as in RTU
function_code = 0x03
start_register_addr = 107
num_registers = 2
pdu = bytes([
    function_code,
    (start_register_addr >> 8) & 0xFF,
    start_register_addr & 0xFF,
    (num_registers >> 8) & 0xFF,
    num_registers & 0xFF
])

# The MBAP header is prepended to the PDU
# [Trans ID Hi][Trans ID Lo][Proto ID Hi][Proto ID Lo][Length Hi][Length Lo][Unit ID]
mbap_header = transaction_id.to_bytes(2, 'big') + \
              protocol_id.to_bytes(2, 'big') + \
              length.to_bytes(2, 'big') + \
              unit_id.to_bytes(1, 'big')

tcp_packet_payload = mbap_header + pdu
# Example raw bytes: [00 01 00 00 00 06 01 03 00 6B 00 02]

This fundamental structural difference perfectly illustrates the core trade-off: RTU’s raw, stripped-down simplicity versus TCP’s networked, feature-rich sophistication.

When to Use Each Protocol: Real-World Scenarios

The debate between Modbus TCP and RTU moves from a technical argument to a practical choice once you look at real-world applications. The best protocol depends entirely on your specific environment, your goals, and what infrastructure you already have in place. Each one has a clear sweet spot where it just works.

The market data paints a clear picture of this. As of early 2025, Modbus TCP/IP dominates with about 45% of the market share for Modbus communication modules, while RTU holds a solid second place at roughly 35%. This shows the unstoppable shift toward Ethernet in modern industry, but it also proves that RTU's sheer resilience keeps it indispensable. You can dig into more Modbus market share and trends if you're curious.

Modbus RTU Best-Fit Scenarios

Modbus RTU is king where simplicity, low cost, and ruggedness are the top priorities. Its serial, point-to-point design makes it the default choice for localized, isolated systems that don't need to be on the main corporate network.

A perfect example is a remote pumping station for water management. These unmanned sites typically have a small number of sensors (pressure, flow rate) and actuators (pump controls, valve positioners) that need to communicate with a single PLC or Remote Terminal Unit (RTU). The distances are short, the data load is minimal, and the area can be full of electrical noise from large motors.

Here, Modbus RTU over a tough RS-485 serial line is the ideal solution.

• Low Cost: You don't need expensive Ethernet switches or complex network gear in a remote shed.

• EMI Immunity: A shielded twisted-pair cable for RS-485 is fantastic at rejecting electrical noise—a must-have when you're working around heavy machinery.

• Simplicity: The setup is dead simple. This makes life easier for field technicians who need to troubleshoot a problem without bringing in an IT specialist.

Another classic use case is inside a single machine's control panel. Think of a CNC machine where one main controller needs to talk to several motor drives, temperature sensors, and limit switches, all tucked away in the same cabinet. An internal Modbus RTU bus is a cheap and incredibly reliable way to link these components without the headache of network configuration.

Modbus TCP Best-Fit Scenarios

When you need speed, scalability, and seamless integration with the rest of the business, Modbus TCP is the obvious winner. Because it runs on standard Ethernet, it has become the foundation for modern, data-hungry industrial operations.

Take a plant-wide SCADA (Supervisory Control and Data Acquisition) system in a huge manufacturing facility. In this scenario, a central control room has to monitor and manage hundreds—sometimes thousands—of data points from every corner of the plant floor.

Modbus TCP is more than just a protocol here; it’s what makes the smart factory possible. It lets a single SCADA system talk to PLCs, HMIs, and smart sensors across different production lines at the same time, breaking free from the physical limits of serial wiring.

This architecture is built for the high-speed data collection needed for real-time analytics and predictive maintenance. For instance, a system might be grabbing temperature, vibration, and energy data every single second from dozens of critical machines. That data flows directly from Modbus TCP devices into a historian database and then to an analytics platform, all using the same IT network the finance department uses. This direct OT-to-IT integration is something Modbus RTU just can't do by itself.

The Hybrid Approach: A Smart Factory Example

The truth is, most large facilities don't pick just one protocol. The smartest and most common strategy is a hybrid architecture that uses the best of both Modbus TCP and RTU.

Imagine a modern automotive plant. The data backbone connecting all the control rooms, SCADA servers, and enterprise systems runs on high-speed Ethernet with Modbus TCP. It’s fast, scalable, and connects everything together.

But out on the factory floor, you'll find numerous "islands of automation." A single welding cell, for example, might still use older robots and sensors that only speak Modbus RTU. Instead of a massively expensive "rip and replace" project, the plant uses a Modbus Gateway.

This little device is a translator.

1. It connects to the local group of RTU devices with a simple RS-485 serial line.

2. It polls them for data just like a traditional Modbus RTU master.

3. It then repackages that data and presents it on the main plant Ethernet network as if it were a standard Modbus TCP device.

This hybrid model gives you the best of both worlds. It lets the company keep its reliable, paid-for legacy gear running at the machine level while still getting all the speed, scale, and enterprise connectivity of Modbus TCP for the big picture.

Your Decision Framework For Choosing Modbus

So, how do you actually decide? After breaking down the architecture, performance, and costs, the choice between Modbus TCP and Modbus RTU boils down to your specific project needs. It’s a strategic decision, not just a technical one.

Think of it less as picking the "better" protocol and more as matching the right tool to the job. To make it simple, I’ve distilled the core differences into four straightforward questions.

Key Questions to Guide Your Choice

Run your project through these four questions. Your answers will almost always point you to the right protocol, ending the Modbus TCP vs. Modbus RTU debate for your application.

1. What does your existing infrastructure look like?
   If your facility is already blanketed in Ethernet and you have a managed IT network, Modbus TCP is a no-brainer. You can plug in new devices with minimal fuss and cost. But if you're dealing with older equipment, isolated control panels, or a "greenfield" site without any network, Modbus RTU's simple point-to-point serial wiring is often the most direct and cost-effective path.

2. How much data do you need, and how fast?
   For high-speed data logging, real-time control loops, or feeding data into modern analytics platforms, Modbus TCP is your only real option. Its bandwidth is essential for these tasks. On the other hand, for slow-moving processes like monitoring tank levels or checking ambient temperature, Modbus RTU's lower data rates are perfectly reliable and more than sufficient.

3. Do multiple systems need to talk at once?
   This is a big one. If your SCADA system, an HMI, and a historian database all need to poll a device simultaneously, you absolutely need Modbus TCP. Its architecture is built for multiple client connections. Modbus RTU, being a single-master protocol, simply can't handle this; you’d be forced into using complex and expensive gateways to even attempt it.

4. What's your budget for hardware and labor?
   At first glance, RTU components look cheaper. But don't forget the labor and material costs of pulling new, dedicated serial cable across a plant—it adds up fast. Conversely, while TCP devices and managed switches have a higher sticker price, you can often piggyback on existing Ethernet infrastructure, making the total project cost surprisingly lower.

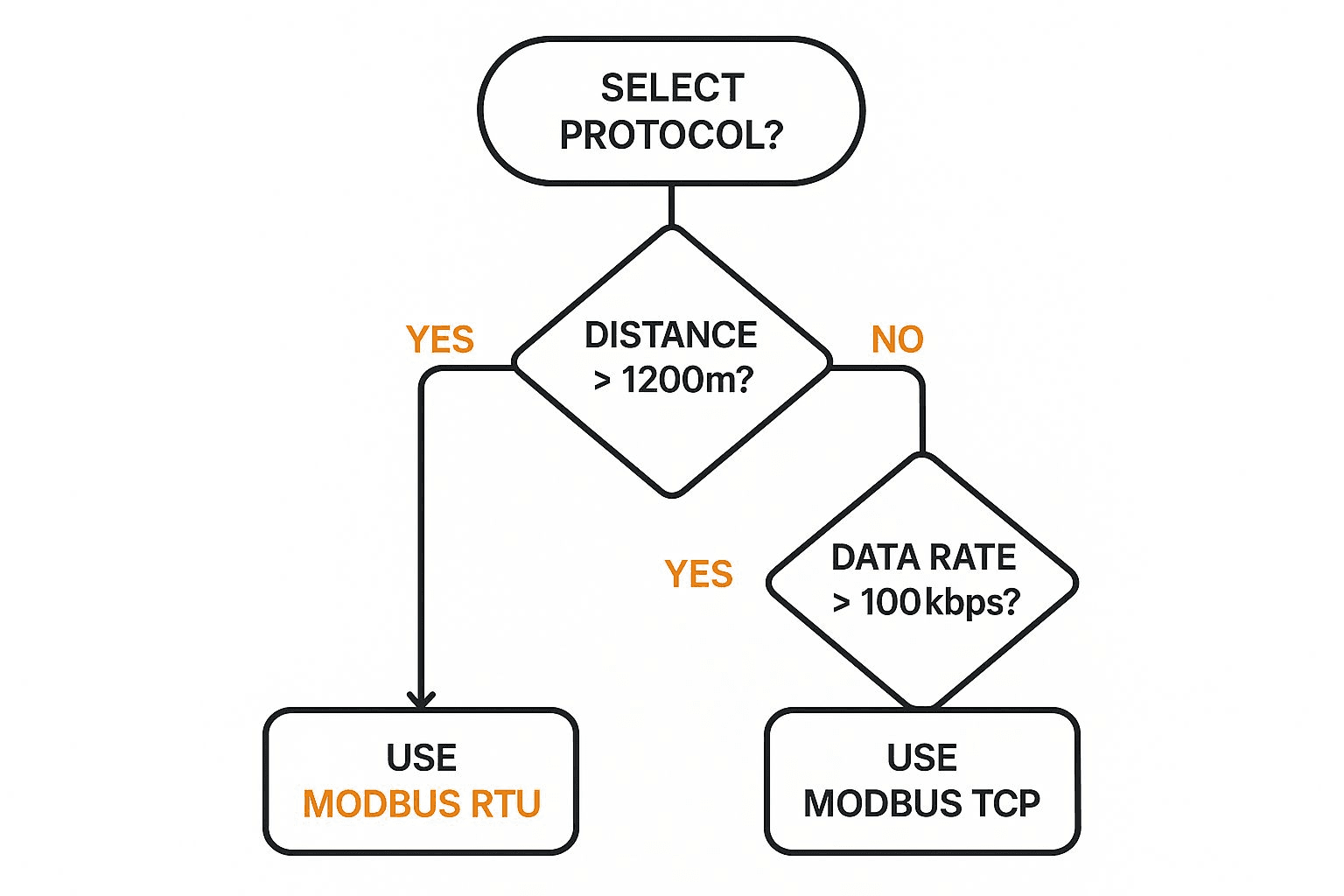

This decision tree gives you a quick visual of how factors like distance and data speed can steer your choice.

As the flowchart shows, the physical realities and performance needs of your system are usually the most powerful deciding factors.

My Final Takeaway: The choice is all about context. Pick Modbus RTU for its bulletproof robustness and low cost in localized, simple, or legacy systems where you need great EMI resistance. Go with Modbus TCP when speed, scalability, and easy integration into modern IT and IoT networks are your main goals. Weigh these factors, and you'll confidently choose the right communication backbone for your system.

Frequently Asked Questions

As you get into the nuts and bolts of a Modbus deployment, a few common questions always pop up. Let's clear the air on some of the practical issues that system integrators and engineers run into when weighing Modbus TCP vs Modbus RTU.

How Do Modbus RTU and TCP Work Together?

It's surprisingly common to see Modbus RTU and TCP used together in hybrid systems, especially when you're trying to bring legacy equipment into a modern network without a massive overhaul. The key to making this happen is a Modbus gateway.

Think of a gateway as a smart translator. It connects to your older, serial-based RTU devices on one side, typically using an RS-485 network. On the other side, it plugs right into your plant's Ethernet network.

The gateway actively polls the RTU devices, gathers all their data, and then presents it to the TCP network. To any client on the network, that whole cluster of old RTU devices looks like a single, modern Modbus TCP device. It's a fantastic way to modernize a facility without having to rip and replace perfectly functional hardware.

Is Modbus TCP More Secure Than Modbus RTU?

This is a tricky one. The Modbus protocol itself, in its pure form, has zero built-in security. That’s true for both RTU and TCP. But, Modbus TCP has a huge practical advantage because it runs on standard IT networks.

This means you can wrap it in all the modern cybersecurity tools you already use. You can stick your Modbus TCP devices behind a firewall, use a VPN for secure remote access, or configure Access Control Lists (ACLs) on your switches to dictate exactly which devices are allowed to talk.

Modbus RTU, being physically isolated on its own wiring, is harder to access from the outside. But if someone gets physical access, there's nothing stopping them from tapping into the data on the wire.

Key Takeaway: Modbus TCP isn't inherently more secure, but it can be made secure using established network security tools. This gives it a massive real-world advantage over the isolated-but-unsecured Modbus RTU.

Do I Need Different Software for Each Protocol?

Yes, absolutely. While the core Modbus function codes (what you're asking the device to do) are the same, the underlying software and configuration for talking to the devices are completely different. Your code has to be written to handle either a serial port or a network socket.

• For Modbus RTU: Your software needs to know all the serial port details—the COM port, baud rate, parity, and stop bits.

• For Modbus TCP: Your software needs the network details—the device's IP address and the TCP port number, which is almost always port 502.

Many software libraries, like the popular PyModbus for Python, can handle both protocols. But you’ll be calling different functions and feeding them completely different parameters to get connected. This is a critical detail, much like how newer protocols demand their own specific client libraries. If you're exploring other industrial protocols, you might find our beginner's guide to getting started with MQTT helpful, as it outlines its own unique setup process.
