Internet of Things Communication Protocols: The Ultimate Guide

At their core, Internet of Things communication protocols are simply the rules that let smart devices talk to each other. They're the invisible backbone of any IoT system, defining everything from how fast a device can send data to how far it can reach and how much power it drains in the process.

The Unseen Language of Connected Devices

Think of these protocols as specialized languages. You wouldn't use complex legal jargon to chat with a friend over coffee, right? In the same way, an IoT device doesn't use the same "language" for every single task. The protocol you choose dictates how efficiently a device can speak, listen, and most importantly, conserve its energy.

This decision is absolutely critical because there's no single "best" protocol for everything. The real challenge is a constant balancing act between three competing factors:

• Power Consumption: How much juice does a device burn to send or receive data?

• Range: What's the maximum distance a device can reliably communicate over?

• Data Throughput: How much data can you shove through the connection in a given time?

A protocol that shines in one of these areas almost always makes a trade-off in another. This is precisely why a tiny, battery-powered soil sensor out in a huge field uses a completely different protocol than a high-definition security camera streaming video in your home.

Why One Protocol Doesn't Rule Them All

Let's look at a few real-world use cases to see these trade-offs in action:

• Smart Agriculture: Imagine a farmer trying to monitor soil moisture across hundreds of acres. The sensors need to survive for years on a single small battery. They only need to send a tiny snippet of data—like a moisture percentage—a few times a day. For this, a low-power, long-range protocol like LoRaWAN is the only sane choice, even if it's incredibly slow. Its business value is in maximizing crop yield and minimizing water waste with minimal operational cost.

• Industrial Automation: On a factory assembly line, a robot needs instantaneous, rock-solid commands to perform its job. It's plugged into the wall, so power isn't a worry, but any delay (latency) could be disastrous. A high-speed, low-latency protocol like PROFINET or EtherCAT is non-negotiable for this kind of real-time control, where business value is tied directly to production uptime and safety.

• Wearable Fitness Tracker: Your smartwatch is constantly syncing your heart rate to your phone, which is usually just a few feet away. It has to be ridiculously power-efficient to make it through the day. A short-range, low-energy protocol like Bluetooth Low Energy (BLE) is the perfect fit, delivering customer value through long battery life and a seamless user experience.

This need for specialized communication methods has sparked a massive market. The global IoT communication protocol market was recently valued at USD 18.1 billion and is expected to climb to around USD 27.4 billion over the next ten years. You can learn more about the research behind these market projections.

This growth just highlights how important it is to pick the right protocol from the start. Getting it wrong leads to failed projects, dead batteries, and frustratingly unreliable systems. Understanding this foundational concept is your first step toward building an IoT solution that actually works.

How IoT Protocols Fit Together

To get a handle on the dizzying array of Internet of Things communication protocols, it helps to stop thinking of them as one big technology. Instead, picture a stack of layers, each with a specific job, all working together. It’s a lot like sending a package across the country—the process isn't a single step, but a series of distinct services built on top of each other.

This "package delivery" analogy is a fantastic way to visualize how IoT data travels from a tiny sensor all the way to a cloud server. Each layer in the stack handles one part of the journey, and different protocols are the specialists operating at each layer.

The Application Layer: The Contents of Your Package

This is the top layer, and it’s all about the data itself—the "what." In our analogy, this is the actual letter you write and seal in the envelope. It’s the valuable information you want to send, like a temperature reading, a GPS coordinate, or a "door open" alert.

Protocols at this layer, like MQTT, CoAP, and HTTP, define how that information is formatted and what it means. They couldn't care less how the data physically gets from point A to B; they only care about the content and context of the message. For a smart thermostat, the application layer message might be as simple as {"temperature": 72}.

The Transport Layer: Your Shipping Service

Once your letter is in the box, you have to choose a shipping service. Do you need guaranteed, next-day delivery with tracking (like FedEx)? Or is standard, less-reliable mail good enough? This is exactly what the Transport Layer does.

It manages the connection between two devices and determines the reliability of the data transfer. The two heavy-hitters here are TCP (Transmission Control Protocol) and UDP (User Datagram Protocol).

• TCP is your premium shipping service. It guarantees delivery and makes sure all the pieces arrive in the correct order. This reliability comes with higher overhead, making it slightly slower and more power-hungry.

• UDP is the "standard mail" option. It's faster and uses less overhead because it doesn't guarantee delivery or order. It just sends the data and hopes for the best, which is perfect for applications where speed is more critical than 100% reliability.

The Network Layer: The Delivery Route

The Network Layer is the logistics engine—the sprawling system of roads, highways, and flight paths your package travels. Its sole job is to figure out the best route for your data to take across different networks to reach its final destination.

This layer handles addressing and routing, ensuring data packets are sent to the correct IP address. This is the domain of the Internet Protocol (IP), which acts as the global postal system for the internet and most IoT networks.

The Link Layer: The Physical Roads and Vehicles

Finally, we get down to the nuts and bolts: the Link Layer. This is the physical infrastructure—the actual trucks, planes, and roads used for delivery. This layer deals with the raw transmission of data over a physical medium, whether that's radio waves, Ethernet cables, or fiber optics.

For IoT, this is where you'll find technologies like LoRaWAN, Wi-Fi, Bluetooth, and Cellular (NB-IoT/LTE-M). These protocols define how the ones and zeros are physically encoded and zapped through the air or over a wire. A protocol like LoRaWAN, for instance, acts as both the "vehicle" and the local "road network" for getting data from a sensor to a nearby gateway.

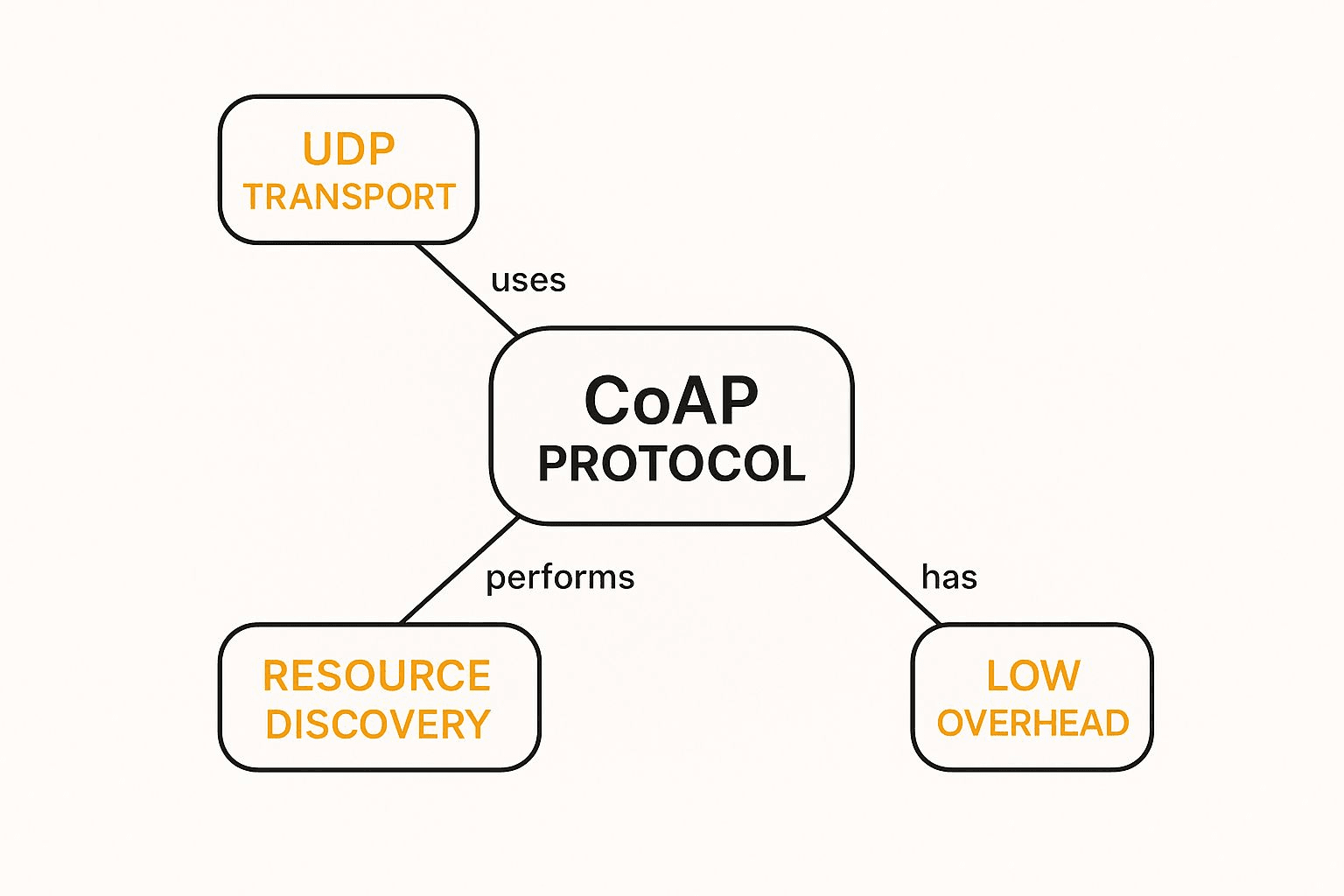

This infographic breaks down how a protocol like CoAP fits neatly into this layered model, showing why it's built for constrained devices.

As the visualization shows, CoAP's reliance on UDP for transport, combined with its design for low overhead and resource discovery, makes it a perfect fit for simple, battery-powered devices that need to be efficient above all else.

Choosing Your Application Protocol: MQTT vs. CoAP vs. HTTP

Alright, now that we have a handle on how protocols stack up in the different network layers, let's zoom in on the most critical one for your data: the Application Layer. This is where your IoT project finds its voice, and picking the right language is crucial.

We're going to break down the three heavy hitters here: MQTT, CoAP, and HTTP. We'll skip the dry, academic definitions and get straight to how they actually work, what they feel like to use, and where they shine—or fall flat. Choosing the right one isn't about finding the "best" protocol, but about finding the best fit for your specific needs.

MQTT: The Efficient Group Chat for Devices

Message Queuing Telemetry Transport, or MQTT, is built on a publish-subscribe model. Instead of a direct device-to-device call, think of it like a highly organized group chat, with a central server called a "broker" acting as the moderator.

Devices don’t chat directly. A device "publishes" a message to a specific "topic" on the broker. Any other device that has "subscribed" to that topic gets the message instantly. This brilliant design decouples the sender from the receivers, making your system incredibly flexible and easy to scale.

This pub/sub architecture makes MQTT an absolute powerhouse for any application needing real-time, one-to-many data streams. Its tiny message headers and low overhead are tailor-made for networks where bandwidth is a luxury and device resources are scarce.

Use Case: Real-Time Fleet Tracking

A logistics company needs to track its fleet of 500 delivery trucks. Each truck is equipped with a sensor reporting its location, speed, and status every 10 seconds. The business goal is to optimize routes, predict delivery times, and monitor driver behavior in real-time.

• How MQTT Fits: Each truck is a "publisher," sending its data to a topic like fleet/truck_123/location. The central dashboard and any mobile apps are "subscribers" to a wildcard topic like fleet/#. This way, they get updates from all trucks in real-time without each truck needing to manage hundreds of individual connections. The business value is immense: improved fuel efficiency, better customer satisfaction through accurate ETAs, and enhanced safety.

Here’s a glimpse of how simple it is to publish a message from a sensor using a Python library:

import paho.mqtt.client as mqtt
import json

# -- Define Connection Details --
broker_address = "broker.hivemq.com"
client = mqtt.Client("Truck_123")

# -- Connect and Publish --
client.connect(broker_address)
payload = {"lat": 34.0522, "lon": -118.2437, "speed": 55}
client.publish("fleet/truck_123/location", json.dumps(payload))

CoAP: The Lightweight Text Message for Sensors

The Constrained Application Protocol, or CoAP, was engineered from the ground up for the tiniest, most power-starved devices you can imagine. If MQTT is a group chat, CoAP is a simple text message—direct, no-frills, and incredibly efficient.

It runs on UDP instead of TCP, which immediately slashes the communication overhead. CoAP cleverly mimics HTTP's request-response methods (GET, POST, PUT, DELETE) but with a much, much lighter footprint. This makes it the go-to choice for simple tasks like reading a sensor value or flipping a switch, where every byte and every milliwatt of battery life is precious.

Use Case: Battery-Powered Smart Agriculture Sensors

A vineyard has scattered hundreds of battery-powered soil moisture sensors across its fields. The goal? Make them last 5-10 years on a single coin-cell battery. These sensors only need to report their status once or twice a day. The business value is in reducing water consumption and improving grape quality.

• How CoAP Fits: A central server sends a simple GET request directly to a sensor's IP address. The sensor wakes from a deep sleep, sends back a tiny packet with the moisture reading, and immediately goes back to sleep. This direct client-server model is ideal for pulling data on-demand from sleepy devices, maximizing battery life and reducing operational costs to near zero.

Conceptually, a CoAP exchange is incredibly lean:

// CoAP Request to get sensor data
METHOD: GET
URI-PATH: /sensors/moisture
HOST: [sensor_ip_address]

HTTP: The Familiar but Heavy Data Hauler

Hypertext Transfer Protocol, or HTTP, is the protocol that built the modern web. It’s robust, everyone understands it, and it’s supported literally everywhere. But for many IoT use cases, using HTTP is like hiring a freight train to deliver a single postcard.

HTTP’s request-response model and its large, text-based headers create a ton of overhead. This translates directly to higher power consumption and greater bandwidth use, making it a poor fit for battery-powered devices that send frequent, small updates. For a deep dive, check out our detailed breakdown in the article MQTT vs HTTP for IoT applications.

Use Case: A Smart Home Management Dashboard

A user wants a web-based dashboard to control their smart lights, thermostat, and cameras from a laptop. The dashboard itself is plugged into a wall, so its power consumption isn't a concern. The business value is in providing a familiar, easy-to-develop user interface.

• How HTTP Fits: The dashboard's web interface can use familiar HTTP GET requests to check a device's status and POST requests to send a command. Using RESTful APIs over HTTP makes development fast and straightforward, tapping into a massive ecosystem of existing tools and developer knowledge, thus reducing time-to-market for the application.

Comparing Key IoT Application Protocols

To make the right call, you need to see the trade-offs side-by-side. The protocol you choose will directly impact your device's battery life, your data costs, and the overall responsiveness of your system.

Here's a quick comparison to help you visualize the differences.

Ultimately, MQTT excels at real-time, event-driven communication. CoAP is the undisputed king of low-power, constrained environments. And HTTP remains a practical choice for web-centric interfaces where development speed and existing infrastructure are the top priorities.

Mastering Long-Range and Low-Power Connectivity

When your IoT devices are scattered across a farm, a sprawling industrial campus, or an entire city, your trusty Wi-Fi and Bluetooth just won't go the distance. This is where a special class of internet of things communication protocols, built for long-range and extreme power efficiency, really shines.

These Low-Power Wide-Area Networks (LPWANs) are the unsung heroes of large-scale IoT. They make applications possible that were once just a pipe dream. Let's dig into the two dominant forces in this space: LoRaWAN and Cellular IoT.

LoRaWAN: The DIY Long-Range Network

LoRaWAN (Long Range Wide Area Network) is a protocol that gives you the freedom to build your own private network. It’s a bit like setting up your own cell tower, but way simpler and without the hefty price tag. Because it operates in unlicensed radio spectrum, you don't have to pay a carrier for service. This makes it a fantastic choice for places where cell signal is weak or the costs would be prohibitive.

The network architecture is a simple but effective "star-of-stars" layout. Your end devices—the "stars"—chirp out small data packets to one or more gateways. These gateways act as bridges, forwarding the data to a central network server, which then routes it to your application.

This setup is perfect for sending infrequent, tiny messages over incredible distances. A single gateway can easily cover several miles in a rural setting, collecting data from thousands of devices.

Use Case: Smart Agriculture Across Hundreds of Acres

Imagine a farmer trying to optimize irrigation by monitoring soil moisture across a massive 500-acre property. Running Wi-Fi out to every corner is a non-starter, and paying monthly cellular fees for hundreds of sensors would quickly become a huge expense.

• How LoRaWAN Fits: The farmer can install a single LoRaWAN gateway on a tall structure like a silo. Then, battery-powered soil moisture sensors are placed throughout the fields. These sensors wake up just a few times a day, transmit a tiny packet with the latest moisture data, and go right back to sleep. The result? The devices can last for 5-10 years on a single battery, delivering immense business value by cutting water usage and boosting crop yields with almost no ongoing operational cost. This tech adoption provides direct ROI.

Cellular IoT: Leveraging Carrier-Grade Infrastructure

While LoRaWAN offers ultimate flexibility, Cellular IoT brings rock-solid reliability by piggybacking on the same mobile networks your smartphone uses. Two main technologies lead the pack here: NB-IoT (Narrowband-IoT) and LTE-M (LTE for Machines). Both were designed by the 3GPP (the folks who standardize cellular tech) specifically for IoT devices.

• NB-IoT: Think of this as the marathon runner of IoT. It’s optimized for massive fleets of static, low-power devices that only need to send tiny bits of data. Its superpower is penetrating deep into buildings and even underground.

• LTE-M: This one is more like a sprinter. It offers higher bandwidth than NB-IoT and supports mobility, making it perfect for assets that are on the move, like delivery trackers or connected vehicles.

The biggest business advantage of Cellular IoT is that it's a fully managed service. You get carrier-grade security and quality of service without having to build or maintain a single piece of network infrastructure yourself. It just works.

Use Case: City-Wide Smart Water Metering

A city utility needs to stop sending people out to manually read tens of thousands of water meters. They need a system that's ultra-reliable, secure, and works everywhere—including deep inside basements where radio signals usually die.

• How NB-IoT Fits: This is a perfect job for NB-IoT. The utility can deploy smart meters that tap into an existing cellular network. The guaranteed service means readings are never missed. And the deep indoor penetration of NB-IoT ensures even those meters in tricky locations stay connected. The business value is a drastic reduction in operational costs (no manual readings) and the ability to provide real-time data to spot costly leaks early, saving money for both the utility and the consumer.

The scale of these deployments is exploding. Globally, there were around 14.4 billion active IoT connections, with projections showing a massive 18% jump to about 18.8 billion in just one year. Cellular IoT is a huge driver of this growth, and you can explore the data behind these global IoT connection trends to see the full picture.

The Business Trade-Off: LoRaWAN vs. Cellular IoT

So, which one is for you? Choosing between these two powerful long-range options boils down to a strategic business decision. There's no single "best" answer—it all depends on your goals, budget, and how you want to operate.

Here’s a look at the key trade-offs from a business perspective:

Ultimately, LoRaWAN gives you unmatched flexibility and long-term cost savings if you're willing to manage your own infrastructure. On the other hand, Cellular IoT delivers managed reliability and massive scale right out of the box, making it perfect for products and services that need to work anywhere, anytime.

And remember, no matter which transport you choose, securing the data itself with a robust application protocol is vital. You can learn more about this by reading our guide on securing your MQTT broker with certificates and TLS.

Dominating Short-Range Communication

While long-range protocols are busy connecting entire cities and farms, a completely different class of internet of things communication protocols is working tirelessly in our immediate surroundings. These are the unsung heroes connecting devices within a single room, a home, or an office building.

Choosing the right one isn't just about picking from the usual suspects—Wi-Fi, Bluetooth, and Zigbee. It’s about making a strategic decision based on what your devices need to do, how much power they can use, and how the network needs to behave. Get it wrong, and you’re setting yourself up for drained batteries, laggy performance, and frustratingly unreliable connections.

Wi-Fi: The High-Bandwidth Powerhouse

When you need serious data throughput, Wi-Fi is the obvious choice. It’s what we all know and use for internet access, and its biggest advantage is its enormous bandwidth. This makes it perfect for data-hungry IoT devices that need a fat pipe to the internet.

Because it runs on existing network infrastructure, adding a new Wi-Fi device is often as simple as connecting it to your router. But all that speed comes at a price: high power consumption. This is why Wi-Fi is fantastic for devices plugged into a wall but a terrible fit for tiny, battery-powered sensors that must sip power to survive.

Use Case: High-Definition Smart Security Camera

A homeowner wants to install a security camera that streams crisp 1080p video to the cloud. This requires a stable, high-bandwidth connection to move large video files without a hitch.

• How Wi-Fi Fits: The camera is plugged into a wall outlet, so battery life is a non-issue. It connects straight to the home's existing Wi-Fi router, which can easily handle the constant video stream. No other short-range protocol can deliver this blend of high performance and simple setup. The business value for manufacturers is ease of installation for consumers, leading to higher adoption rates.

Wi-Fi's dominance in homes and businesses has made it a central pillar of the IoT market. In the U.S. alone, the IoT ecosystem has an estimated market size of USD 413 billion, and Wi-Fi commands the largest revenue share thanks to its massive installed base and real-time, high-speed capabilities. You can discover more insights about the U.S. IoT market.

Bluetooth Low Energy: The King of Power Efficiency

Bluetooth has come a long way from its early days of wireless headsets. The arrival of Bluetooth Low Energy (BLE) was a genuine game-changer for IoT. As its name suggests, BLE is engineered for extreme power efficiency, allowing small devices to run for months or even years on a single coin-cell battery.

It accomplishes this by sending tiny packets of data in short, infrequent bursts. BLE isn't designed for streaming video, but it’s the undisputed champion for devices that just need to periodically report their status or broadcast their presence. For a deeper look at how low-power protocols can be paired with powerful backends, check out our guide on when and where to adopt MQTT in your tech stack.

Use Case: Asset Tracking Beacons in a Warehouse

Imagine a massive retail warehouse that needs to track the location of thousands of high-value items on pallets. The business goal is to reduce the time it takes to find inventory and prevent loss.

• How BLE Fits: Small, inexpensive BLE beacons are attached to each pallet. These beacons do one simple thing: broadcast an identifier every few seconds. Gateways installed throughout the warehouse pick up these signals and use them to pinpoint the pallet's location. The beacons are so efficient they can operate for over five years without a battery change, providing huge operational savings and improving inventory accuracy.

Zigbee: The Self-Healing Mesh Network

What makes Zigbee so special is its ability to create robust, self-healing mesh networks. In a mesh, devices don't all need to connect back to a central hub; they can talk directly to each other. If one device—or "node"—in the network goes offline, messages simply find a new path through other nearby nodes to get where they need to go.

This self-healing design is Zigbee's killer feature. It creates an incredibly resilient web of communication where a single point of failure won’t bring down the whole system.

This makes Zigbee perfect for deploying a large number of devices across a building. In fact, every new device you add to a Zigbee network actually makes the entire system stronger by creating more possible routes for communication.

Use Case: A Fully Integrated Smart Home

A homeowner wants to automate everything—lights, door locks, thermostats, and window blinds. They need a system where a single command, like "goodnight," triggers actions across multiple devices without fail.

• How Zigbee Fits: The smart lights, locks, and blinds all join the same Zigbee mesh network. A command sent from a phone to the central hub can hop from a lightbulb in the hallway to the lock on the front door. Even if a lamp in the living room gets unplugged, the network automatically reroutes the signal through other devices to make sure the command gets executed. The business value for smart home companies is reliability, which leads to fewer support calls and higher customer satisfaction.

Your IoT Protocol Questions Answered

Diving into the world of internet of things communication protocols always brings up a ton of questions. As you move from the whiteboard to actually building something, the trade-offs between different protocols become very real. This section tackles some of the most common questions we hear from developers and tech leads to help you get unstuck and make the right calls for your project.

What Is the Most Popular IoT Communication Protocol?

This is a classic question, but there's no single "most popular" protocol. The better question is, "What's the right tool for the job?" Popularity depends entirely on the specific application.

For cloud communication, especially with low-power devices, MQTT is the undisputed king. Its lightweight publish-subscribe model is just built for this kind of work. In the smart home world, you’ll find Zigbee and Z-Wave everywhere, creating those resilient local mesh networks. And when you have devices with plenty of power that need high bandwidth, good old Wi-Fi is still the go-to.

The reality is, most modern IoT solutions are a mix-and-match of protocols. Think about a fitness tracker: it might use Bluetooth Low Energy (BLE) to talk to your phone, and then your phone uses MQTT over Wi-Fi or cellular to push that data to the cloud.

Can I Use HTTP for My IoT Project?

You absolutely can, and sometimes it’s a perfectly good choice. The biggest win for HTTP is that everyone knows it. Your developers are familiar with it, and there are countless tools and libraries ready to go, which can seriously speed up development, especially for things like device management dashboards.

But—and this is a big but—HTTP is a heavyweight. For a tiny, battery-powered sensor that needs to send small updates frequently, HTTP is incredibly inefficient. Its text-based format and beefy message headers create a lot of overhead compared to lean, binary protocols like MQTT or CoAP. All that extra data burns through battery and racks up data costs.

The Bottom Line: HTTP is great for web-based UIs and devices where power isn't a concern. For constrained devices where every milliamp and kilobyte counts, pick a lighter protocol.

How Do I Secure My IoT Communications?

Security isn't a feature you bolt on at the end; it has to be baked into your system from the very beginning, no matter which protocol you choose. Security is a layer that works with the protocol.

• For IP-based protocols like MQTT and HTTP, this is non-negotiable: you must use their secure versions, MQTTS and HTTPS. Both use Transport Layer Security (TLS) to encrypt everything in transit, stopping anyone from snooping on or messing with your data.

• For LPWAN technologies like LoRaWAN, security is a core part of the spec. It provides strong, end-to-end encryption from the device all the way to the application server using unique session keys.

The core principles never change: never send unencrypted data, and always use strong, unique authentication for every device. You have to be certain you’re only talking to your legitimate devices.

What Is the Difference Between NB-IoT and LoRaWAN?

Both are leading Low-Power Wide-Area Network (LPWAN) technologies built for long-range, low-data use cases. The fundamental difference between them comes down to infrastructure and business model.

NB-IoT (Narrowband-IoT) runs on licensed cellular bands, meaning it's managed by mobile network operators like Verizon or Vodafone. You're essentially buying a service. This gives you carrier-grade reliability and massive coverage without having to build a single piece of your own network infrastructure.

• Practical Example: A city wants to deploy thousands of smart water meters. They need guaranteed coverage across the whole city. A managed cellular service like NB-IoT is the perfect fit. The business value is speed to market and predictable operational costs (OPEX) with a service level agreement (SLA).

LoRaWAN (Long Range Wide Area Network), on the other hand, operates on unlicensed public radio frequencies (the ISM band). This means anyone can set up their own private network. A farmer, a factory owner, a university—anyone can deploy their own gateways.

• Practical Example: A large vineyard needs to monitor soil moisture across remote fields where cell service is spotty or non-existent. The owner can stick a LoRaWAN gateway on a tall silo, creating their own private network with zero monthly data fees. The business value is a lower total cost of ownership (TCO) over several years, despite a higher initial capital expense (CAPEX).

So, the choice is really about control versus convenience. NB-IoT gives you a managed, ready-to-go service, while LoRaWAN gives you the ultimate freedom to build and own your network.
