A Practical Guide to IoT Data Visualization

The real magic of IoT isn't just about connecting devices—it’s about understanding the story their data is trying to tell. Think of IoT data visualization as the translator that turns a constant stream of raw sensor readings into clear, actionable business insights.

This guide is all about setting up that translator. We’ll walk through the entire process, from capturing data with MQTT all the way to building a live, interactive dashboard with ThingDash, using practical examples and code every step of the way.

Why Seeing Your IoT Data Is a Game Changer

The Internet of Things (IoT) generates a relentless, almost overwhelming, stream of data. Without a way to interpret it, this data is just noise. This is exactly where IoT data visualization steps in, acting as the essential bridge between raw numbers and genuine intelligence.

When you represent complex data streams with intuitive charts, graphs, and maps, something powerful happens. You can instantly spot patterns, anomalies, and opportunities that would otherwise stay buried in spreadsheets or endless log files. It’s the difference between guessing and knowing.

To get us started, let's look at the key technologies we'll be using in this tutorial. Each one plays a specific, vital role in bringing our data from the sensor to the screen.

Key Technologies In Our IoT Visualization Pipeline

This table breaks down the essential technologies used in our tutorial, explaining the role each one plays in the journey from sensor to screen.

Each piece of this pipeline is chosen for its efficiency and suitability for real-time IoT applications. Together, they create a robust flow of information that's both reliable and easy to interpret.

Unlocking Business Value Through Visuals

The business case for visualizing your IoT data is incredibly clear and compelling. It fundamentally shifts decision-making from being reactive to proactive by giving you a real-time pulse on your operations. This newfound visibility drives tangible, measurable outcomes across countless industries.

Here are some practical use cases showing the business value:

• Predictive Maintenance in Manufacturing: A factory manager monitors a dashboard showing machine temperatures, vibration levels, and power consumption. A line chart reveals a gradual upward trend in vibration over two weeks, a pattern invisible in daily spot-checks. This triggers a proactive maintenance check, which uncovers a failing bearing. Business Value: Prevents a catastrophic and costly production line failure, saving an estimated $250,000 in downtime and emergency repairs.

• Smart City Traffic Management: Urban planners visualize live traffic flow from road sensors on a map-based dashboard. This allows them to identify congestion hotspots in real-time. Business Value: By optimizing traffic light timings dynamically based on this data, the city reduces average commute times by 15% and lowers fuel consumption and emissions.

• Precision Agriculture: Farmers use dashboards to see soil moisture levels from sensors spread across vast fields. A heat map of the fields instantly shows which areas are too dry or too wet. Business Value: This allows for incredibly precise, zone-based irrigation, which conserves millions of gallons of water annually and improves crop yields by up to 20% by preventing under- or over-watering.

The core benefit here is empowerment. IoT data visualization gives teams at every level the ability to understand complex systems at a glance and make smarter, data-driven decisions with confidence.

The Exploding Market for IoT Analytics

This need for visual insight is driving explosive market growth. Fueled by Industry 4.0 and the rise of hyper-connected environments, the global IoT data analytics market is on a steep upward trajectory. Projections show it skyrocketing from USD 35.83 billion in 2025 to a massive USD 143.62 billion by 2030.

This incredible growth reflects an urgent, industry-wide need for tools that can make sense of the terabytes of data churned out by billions of devices—from our smart home gadgets to heavy industrial sensors. You can dive deeper into the numbers by checking out the full analysis on the IoT analytics market surge.

Choosing The Right Tools For The Job

Getting started with any IoT project, the first big decision is always about the tools. This isn't just a technical choice; it's a strategic one that will define how your project evolves, how quickly you see results, and how well it scales.

The market is flooded with options, but your decision really boils down to one fundamental question: do you go with an all-in-one IoT platform or build a more flexible, composable stack? Each path has its own set of trade-offs, and the right one for you depends entirely on your project's goals.

Platform vs. Composable Stack: A Technical and Business Comparison

An all-in-one platform like ThingsBoard is a pre-packaged toolkit bundling the MQTT broker, database, and dashboard builder. This is fantastic for rapid prototyping.

• Business Value: Low upfront investment and fast time-to-value. A team can build a proof-of-concept (PoC) in days, quickly demonstrating the ROI of an IoT initiative to stakeholders without a large engineering team.

• Technical Adoption: Simple setup and managed infrastructure. The trade-off is often a "black box" environment with limited customization, vendor lock-in, and potential scaling constraints. Good for smaller projects or initial explorations.

A composable stack, on the other hand, is like building a custom toolkit. You hand-pick the best tools for each job—a specialized MQTT broker like Mosquitto, a time-series database like InfluxDB, and a visualization layer like Grafana or our own ThingDash.

• Business Value: Creates a highly flexible, scalable, and future-proof asset. It avoids vendor lock-in and can be optimized for performance and cost as the project grows, leading to a lower total cost of ownership (TCO) at scale.

• Technical Adoption: Requires more upfront setup, DevOps expertise, and architectural planning. However, it provides complete control, allowing for specialized optimizations (e.g., choosing a database optimized for specific query patterns) and seamless integration with other enterprise systems.

Use Case Comparison: For a smart home project monitoring 10 temperature sensors, an all-in-one platform is a no-brainer. But for an industrial predictive maintenance system for a factory with 500 high-frequency sensors, you’ll need the robust, specialized architecture that only a composable stack can provide to handle the data velocity and complex analytics.

Ultimately, it’s a classic trade-off: speed-to-value versus long-term flexibility. A platform gets you to a working dashboard fast, which is great for showing immediate business value. A composable stack is a bigger initial investment but gives you a powerful, scalable asset that can grow with your needs.

The demand for these tools is exploding. The data visualization market was valued at USD 9.52 billion in 2025 and is on track to hit USD 15.75 billion by 2029. This growth is a direct result of the IoT boom and the critical need to make sense of the massive data streams these devices produce.

A Practical Decision Framework

So, how do you make the right call for your IoT data visualization project? I always come back to a few key questions:

• Project Scale: How many devices are you connecting? What’s the data velocity? If you’re looking at fewer than 50 devices with infrequent updates, a platform will serve you well. For anything larger, a purpose-built stack is almost always the better long-term choice.

• Real-Time Requirements: Does your dashboard need to reflect changes in under a second? If so, your protocol and database choices are critical. For a deeper look at this, check out our comparison of MQTT vs HTTP for IoT applications.

• Customization Needs: Do you have a very specific vision for your dashboards or need to perform complex data transformations? Platforms can feel restrictive here. A code-first approach using libraries like D3.js or a flexible tool like ThingDash gives you a blank canvas.

• Team Skillset: Be honest about your team's strengths. If you don't have deep DevOps or backend engineering expertise, the managed environment of an IoT platform can be a lifesaver, cutting down on complexity and accelerating your timeline.

Building Your Real-Time MQTT Data Pipeline

Before you can even think about crafting a slick IoT data visualization, you need a rock-solid foundation: the data pipeline. A steady, dependable stream of information flowing from your devices is the absolute heart of any real-time IoT system. This is precisely where the Message Queuing Telemetry Transport (MQTT) protocol comes in and truly shines.

MQTT is a lightweight, publish-subscribe protocol that has pretty much become the standard for IoT communication. I’ve seen it used everywhere because it’s incredibly efficient, especially in low-bandwidth or spotty network conditions. It's perfect for connecting everything from tiny, battery-sipping sensors to heavy-duty industrial machinery.

For this guide, we'll be using Mosquitto, a popular and robust open-source MQTT broker, to act as the central hub for our data messages.

Getting the MQTT Broker Running

First things first, we need to get our Mosquitto broker set up. Think of the broker as the central post office for all your IoT data. Devices "publish" messages to specific addresses (we call these "topics"), and any application that has "subscribed" to that topic gets the message instantly. It's a beautifully simple and effective system.

In a real-world production environment, you’d install Mosquitto on a dedicated server or a cloud instance. One of the most important things you can do early on is establish a logical topic structure. Trust me, this is crucial for keeping things organized and making your system scalable down the road. A great practice I always recommend is using a hierarchical format that clearly spells out the data's origin.

For instance, a topic like factory/floor1/machineA/temperature is immediately understandable. You know right away the data is from a specific factory, on the first floor, from machine A, and it's a temperature reading. No guesswork involved.

Publishing Sensor Data with a Python Script

Okay, with our broker up and running, we need something to actually send it data. We can easily simulate a sensor publishing data using a simple Python script. The Paho-MQTT library is excellent for this. This script will connect to our broker and periodically shoot over a JSON payload with some fake sensor readings.

Here’s the complete publisher script you can use:

import paho.mqtt.client as mqtt
import time
import json
import random

# MQTT Broker connection details
BROKER_ADDRESS = "localhost" # Replace with your broker's IP or hostname
PORT = 1883
TOPIC = "factory/floor1/machineA/temperature"

def on_connect(client, userdata, flags, rc):
    if rc == 0:
        print("Connected to MQTT Broker!")
    else:
        print(f"Failed to connect, return code {rc}\n")

client = mqtt.Client(mqtt.CallbackAPIVersion.VERSION1, "SensorPublisher")
client.on_connect = on_connect
client.connect(BROKER_ADDRESS, PORT)
client.loop_start()

try:
    while True:
        # Simulate a temperature reading
        temperature = round(random.uniform(20.5, 25.5), 2)
        payload = json.dumps({"temperature_celsius": temperature})

        # Publish with QoS 1 for guaranteed delivery
        result = client.publish(TOPIC, payload, qos=1)
        result.wait_for_publish() # Wait for confirmation

        if result.is_published():
            print(f"Published to {TOPIC}: {payload}")
        else:
            print("Failed to publish message.")

        time.sleep(5)
except KeyboardInterrupt:
    print("Stopping publisher...")
    client.loop_stop()
    client.disconnect()

You'll notice we set the Quality of Service (QoS) to 1. This is a key detail. It guarantees that our message is delivered at least once, which is critical for any application where losing data simply isn't an option. If you want to dive deeper into this, check out our guide on when and where to adopt MQTT in your tech stack.

Pro Tip: Always use JSON for your payload format. It's a best practice for a reason. It’s human-readable, supported everywhere, and flexible enough to handle different data structures as your project grows and evolves.

Making Sure the Data Is Flowing

So, how do we know our pipeline is actually working? We need to confirm the data is making it all the way through. The easiest way is to create a subscriber. This will be a second Python script that listens to the exact same topic and just prints out any messages it receives. It’s a simple but effective end-to-end check.

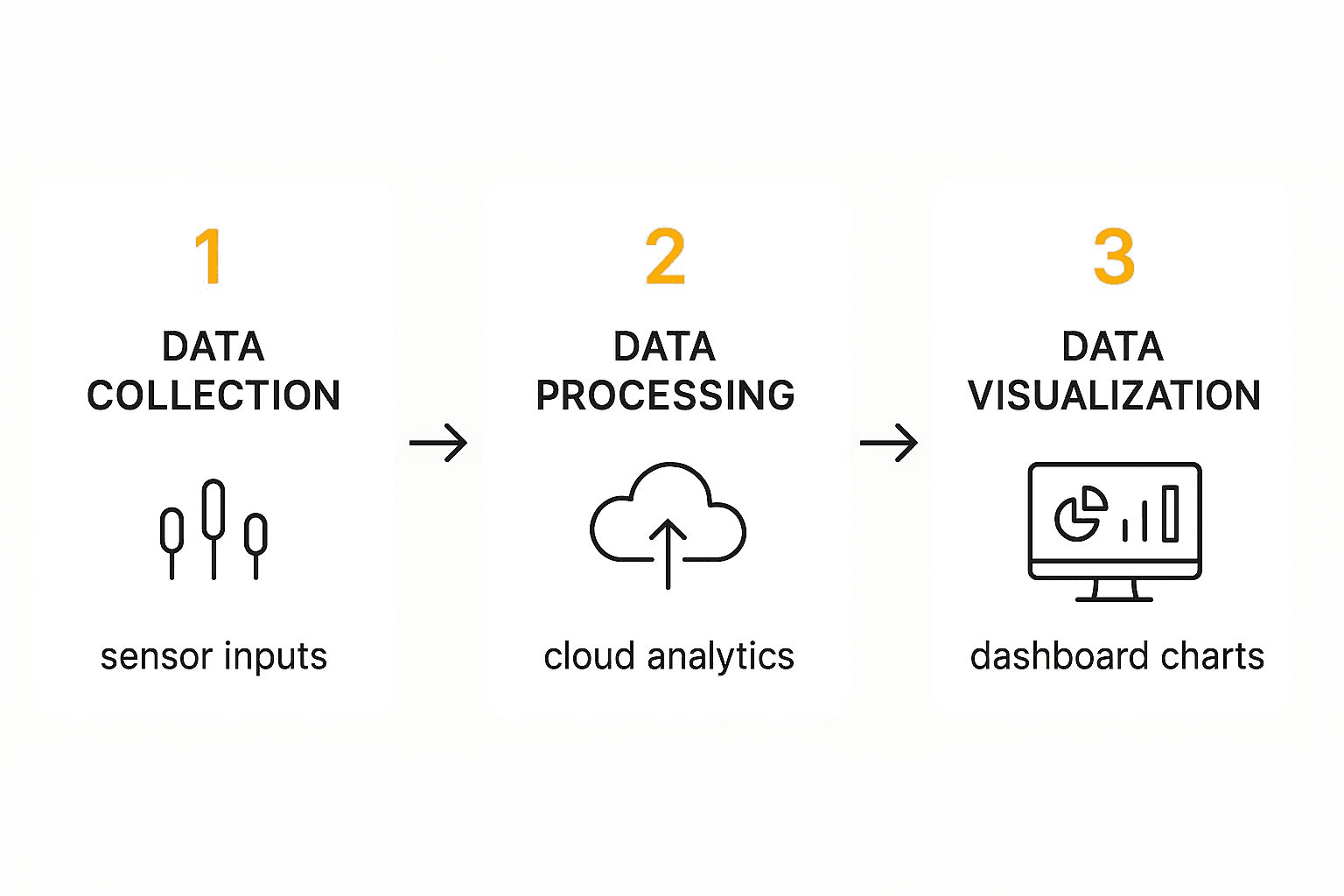

This whole process, from the sensor to the screen, is what we're building.

As you can see, the raw sensor inputs are gathered, sent up to be processed, and finally displayed on a dashboard where someone can actually make sense of them.

With this simple yet powerful pipeline in place, you’ve built the foundation for any real-time IoT application. You're now successfully gathering data. The next step is to grab that data with ThingDash and get it ready for visualization.

Processing and Preparing Data for Your Dashboard

Alright, your MQTT broker is humming along, and a steady stream of data is flowing. You’ve reached a critical midway point. The next job is to build the bridge between this raw, real-time feed and the dashboard you’re aiming to create. This means we need to catch the data, clean it up, and get it into a format that’s ready for fast visualization.

Here's the thing about raw sensor data: it’s rarely "dashboard-ready." It often needs a bit of cleaning, some transformation, and proper structuring before it's actually useful. This prep phase is what makes or breaks a responsive and insightful IoT data visualization.

Subscribing to and Parsing MQTT Messages

First, we need a service that listens to our MQTT topics. Think of this service as a dedicated worker that subscribes to the data stream and immediately gets to work on each message it receives. We can build a solid Python service for this using the same Paho-MQTT library.

The service will connect to the broker, subscribe to factory/floor1/machineA/#, and wait for messages. The # is a wildcard, so it'll grab everything under that topic tree. As soon as a message arrives, we decode its JSON payload.

Here’s a practical code snippet for this processing service:

import paho.mqtt.client as mqtt
import json

# MQTT and other configuration details
MQTT_BROKER = "localhost"
MQTT_PORT = 1883
MQTT_TOPIC = "factory/floor1/#"

def on_message(client, userdata, msg):
    """
    Callback function to process incoming MQTT messages.
    """
    try:
        # Decode the payload from bytes to a UTF-8 string, then parse as JSON
        payload_str = msg.payload.decode('utf-8')
        data = json.loads(payload_str)
        print(f"Received message from {msg.topic}: {data}")

        # Practical Example: Data Transformation
        # Imagine a sensor sends voltage, but we need temperature.
        if "voltage" in data and "temperature" not in data:
            # Simple linear conversion formula (example only)
            data['temperature_celsius'] = (data['voltage'] - 0.5) * 100
            print(f"Transformed data: {data}")

        # Next step: Write the cleaned, transformed data to a time-series database.
        # write_to_tsdb(msg.topic, data)

    except json.JSONDecodeError:
        print(f"Error: Could not decode JSON from topic {msg.topic}. Payload: {msg.payload}")
    except Exception as e:
        print(f"An unexpected error occurred: {e}")

client = mqtt.Client(mqtt.CallbackAPIVersion.VERSION1, "DataProcessor")
client.on_message = on_message
client.connect(MQTT_BROKER, MQTT_PORT, 60)
client.subscribe(MQTT_TOPIC)

print("Starting data processing service...")
client.loop_forever()

This script is the core of our data processing logic. It’s the perfect place to add steps for handling inconsistencies and getting the data ready for storage.

Transforming and Storing the Data

One of the biggest headaches in IoT is dealing with inconsistent data. You’ll have different sensors sending data in slightly different formats, or maybe you need to convert raw sensor readings into something more meaningful, like the voltage-to-temperature conversion in the code snippet above.

This on-the-fly transformation is a non-negotiable step. It ensures all data is normalized into a consistent, query-friendly format before it ever hits the database, which drastically simplifies dashboard queries later on.

So, where does this cleaned-up data go? The ideal destination is a time-series database (TSDB). Tools like InfluxDB or QuestDB are built specifically for the high-volume, time-stamped data that's so common in IoT. They're incredibly fast at both ingesting data and running queries over specific time ranges.

Often, storing data this way involves pushing it to the cloud. This is standard practice in modern IoT, and you can dive deeper into the reasons in our guide to cloud computing in IoT.

With this service up and running, you now have a complete, automated pipeline. It catches, processes, and archives your sensor data, which is now primed and ready to be plugged into a visualization tool like ThingDash.

Designing Your First Real-Time IoT Dashboard

With your data pipeline built and the processing service humming along, this is where the magic really happens. We're about to connect that clean, prepared data source to a visualization tool—like our own ThingDash—and build a dashboard that tells a clear, immediate story. This is easily the most rewarding part of any IoT data visualization project.

The focus here is all on practical application. A great dashboard isn't just a random collection of charts; it’s a purpose-built command center where every single element serves a specific function. The key is choosing the right visualization for the right type of data.

Selecting the Right Widgets for Your Data

Your first move in dashboard design is matching your metrics to the best widget for the job. Different kinds of data tell different stories, and your choice of visualization needs to reflect that. I've seen a poorly chosen chart completely hide critical insights just as often as a good one has revealed them.

Here are some real-world use cases for matching widgets to common IoT data streams:

• Gauges for Real-Time Status: For any instantaneous value, like the current temperature of a machine or the pressure in a pipe, a gauge is perfect. Use Case: A chemical plant operator needs to ensure a reactor's pressure stays within a safe range. A large gauge on their main dashboard provides an immediate, at-a-glance reading.

• Line Charts for Historical Trends: When you need to track a metric over time—say, humidity levels in a data center over the past 24 hours—a line chart is the industry standard. Use Case: A data center manager uses a line chart to spot a cyclical spike in humidity every afternoon, which correlates with an external door being propped open, allowing them to fix the issue.

• Status Panels for Binary Data: For simple on/off or open/closed states, like a door contact sensor or a pump status, a status panel is ideal. Use Case: In a smart warehouse, a dashboard uses status panels to show which loading bay doors are open or closed, with the color changing to red if a door is left open for more than 10 minutes.

Pro Tip: Whatever you do, don't try to cram too much information into a single chart. A dashboard with multiple, simple widgets is almost always more effective than one with a single, overly complex visualization. Clarity beats density every single time.

This approach is exactly how we turn raw data from billions of devices into insights you can actually use. It’s no surprise the IoT analytics market, valued at over USD 63 billion in 2024, is expected to explode to nearly USD 508.7 billion by 2032. This massive growth just shows how critical good visualization is for making smart decisions in everything from smart cities to manufacturing. You can dig deeper into the forces driving IoT analytics adoption if you're curious.

Battle-Tested Dashboard Design Tips

A truly great dashboard is more than just the sum of its parts. How you arrange and style your widgets is just as important as which ones you pick. After building more dashboards than I can count, I've picked up a few core principles.

First, group related metrics together. If you have temperature, humidity, and pressure charts for a single machine, put them in the same area. This creates logical blocks that people can understand quickly without their eyes darting all over the screen.

Second, use color to signal alerts and status. This is one of the most powerful tools you have. Set thresholds so that a temperature gauge turns yellow when it gets warm and red when it hits a critical level. That visual pop immediately draws the eye to what needs attention.

Here's a practical example of configuring a color threshold for a gauge:

• Green: Temperature is below 75°F (Normal)

• Yellow: Temperature is between 75°F and 85°F (Warning)

• Red: Temperature is above 85°F (Critical Alert)

Finally, arrange your panels to tell a story. Put the high-level summaries and key performance indicators (KPIs) right at the top. The more detailed historical charts can go below. This lets a user get a quick overview and then dive deeper if something specific catches their eye.

Common Questions About IoT Data Visualization

As you start piecing together your own dashboards, you'll inevitably run into a few common roadblocks. I've seen them trip up developers time and time again. Let's walk through some of the most frequent questions so you can sidestep those hurdles and refine your approach to IoT data visualization.

How Do I Handle Massive Amounts of IoT Data?

One of the biggest fears I hear is, "Won't my dashboard grind to a halt if I'm visualizing high-frequency data from thousands of sensors?" It's a completely valid concern. The good news is that it’s entirely avoidable with one simple rule: don't send raw, high-volume data directly to your visualization layer.

The real secret is to process and aggregate your data before it ever gets close to the dashboard. This is precisely what time-series databases (TSDB) like InfluxDB or TimescaleDB were built for. They are absolute workhorses, designed for lightning-fast ingestion and on-the-fly aggregation.

Practical Example: A sensor reports temperature every second. For a 24-hour view, querying all 86,400 raw data points would be slow. Instead, your dashboard query should ask the TSDB for the average temperature for each 1-minute interval. This reduces the data points to just 1,440, making the chart load instantly. Only when a user zooms into a 5-minute window would you query the raw, per-second data.

For your dashboard design, this means you should query aggregated data for longer time ranges (like one-minute averages) and only pull in raw data when a user zooms into a very short, specific timeframe. This single strategy dramatically cuts down on the data transferred and rendered by the browser, keeping your dashboard feeling snappy and responsive.

What Is the Difference Between MQTT and HTTP for IoT Data?

Choosing the right protocol is one of those foundational decisions that can make or break your project's performance. My go-to is almost always MQTT, a lightweight, publish-subscribe protocol purpose-built for the exact conditions you find in IoT: low-bandwidth, high-latency networks with battery-powered devices. It works by maintaining a persistent connection, which is perfect for continuous data streaming.

HTTP, on the other hand, is a much heavier request-response protocol. Each data point requires a brand new connection, which is incredibly inefficient when you're trying to stream constant updates from dozens or hundreds of devices.

Technology Comparison:

• MQTT: Stateful (maintains an open TCP connection), publish/subscribe model, minimal packet overhead. Ideal for pushing real-time updates from many devices to a central point.

• HTTP: Stateless (new connection for each request), request/response model, larger headers. Better suited for client-initiated actions, like a user clicking a button to turn a device on or off.

For any project involving real-time IoT data visualization, MQTT is the clear winner for getting data from the device to the broker.

Can I Visualize IoT Data Without Writing Any Code?

Absolutely. The rise of low-code and no-code platforms has opened up the world of IoT to everyone, not just seasoned developers. Several all-in-one IoT platforms now offer complete, end-to-end solutions that require little to no programming.

These platforms are fantastic for a few specific scenarios:

• Rapid Prototyping: They let you build a functional proof-of-concept in hours, not weeks, helping you demonstrate business value quickly.

• Simplified Projects: Perfect for smaller-scale deployments where you don't want the headache of managing backend infrastructure.

• Empowering Non-Developers: They give teams without deep coding skills the power to build and manage their own monitoring dashboards.

While these tools are a great way to get started, they often trade simplicity for flexibility. You might find they offer less customization and can't scale as well as a custom-built stack like the one we've outlined here.
